Minipočitač Shuttle XPC nano NC01U

XPC nano NC01U
24 mesiacov
Dopor. cena:
207,50 €
Dopor. cena s DPH:
249 €
Dodacia lehota:
skladom 1+
Porovnaj produkt

Minipočitač Shuttle XPC nano NC01U

Minipočítač Shuttle XPC nano NC01U : procesor Intel Celeron 3205U (ULV) / 2GB RAM / 30 GB SSD .So sériou NC01, Shuttle predstavuje svoju prvú radu mini-PC s objemom menej než 600 ml. Tieto malé počítače sú poháňané vysoko účinnými "Broadwell" ULV procesormi Intel od Celeron až Core i7. Tvorí ideálnu platformou pre aplikácie, ako je digital signage, POS, kiosk, tenkého klienta, Cloud Computing, Office PC a multimédiá .

Zostava obsahuje :
Shuttle XPC nano NC01U : procesor Intel Celeron 3205U (ULV) / 2GB RAM / 30 GB SSD

High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.
HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Securely attached

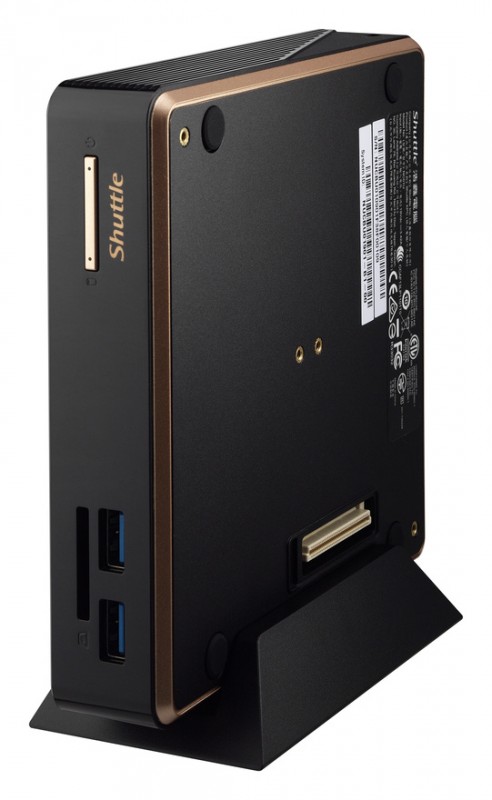

The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.

  • Chassis
    Barebone PC with a black plastic chassis
    Dimensions: 141 x 141 x 29 mm (LWH) = 577 ml
    Weight: 0.36 kg net, 1.26 kg gross
    Hole for Kensington Lock
    Includes vertical stand and 75/100mm VESA mount
  • Low Power Consumption
    Power consumption in idle mode: 5.5 W, full load: 11.6 / 22.4 W (without/with graphics)
    (measured with 4 GB DDR3L SO-DIMM, 64 GB 2.5" SSD, Windows 7)
  • Operation System
    This barebone system comes without operating system.
    It is compatible with:
    - Windows 7 (including  Embedded [4]), 32- and 64-bit
    - Windows 8.1 (including Embedded [4]), 32- and 64-bit
    - Windows 10, 32- and 64-bit
    - Linux, 32- and 64-bit (e.g. Ubuntu, OpenSUSE, Fedora)
  • Processor
    Model: Intel Celeron 3205U (ULV)
    System-on-a-chip architecture (SoC): no chipset required
    Code name: Broadwell (5th Generation Intel Core)
    Cores / Threads: 2 / 2
    Clock rate: 1.5 GHz
    L1/L2/L3 Cache: 128 kB / 512 kB / 2048 kB
    Memory controller: DDR3L-1600 Dual Channel (1.35V)
    TDP wattage: 15 W maximum
    Manufacturing process: 14 nm
    Maximum Tjunction Temperature: 105°C
    Integrated Intel HD graphics engine
    Supports 64 Bit, VT-x, VT-d, Enhanced SpeedStep, NX bit, SSE 4.1/4.2
  • Integrated Graphics
    Intel HD Graphics
    Clock rate: 300~800 MHz
    Maximum resolution: 2560 x 1600
    Execution Units (EU): 12
    Two digital audio/video ports: Mini-DisplayPort 1.2 [1] and HDMI 1.4a
    Supports two independent screens
    Supports DirectX 11.2, OpenCL 1.3/2.0, OpenGL 4.3
    Supports full AVC/VC1/MPEG2 hardware decoding
    Supports HD video plus multi-channel digital audio via a single cable
    Dynamic, shared memory: up to 1632 MB
  • Mainboard / BIOS
    Supports resume after power failure
    Supports Wake on LAN (WOL)
    Supports Power on by RTC Alarm
    Supports booting from USB devices and SD card reader
    AMI BIOS in 8 MByte EEPROM with SPI interface
    Supports hardware monitoring and watch dog function (ITE 8528E)
    Supports Unified Extensible Firmware Interface (UEFI)
  • Power Adapter
    External 65 W power adapter (fanless)
    Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
    Output: 19 V DC, max. 3.42 A, max. 65 W
    DC Connector: 5.5/2.5mm (outer/inner diameter)

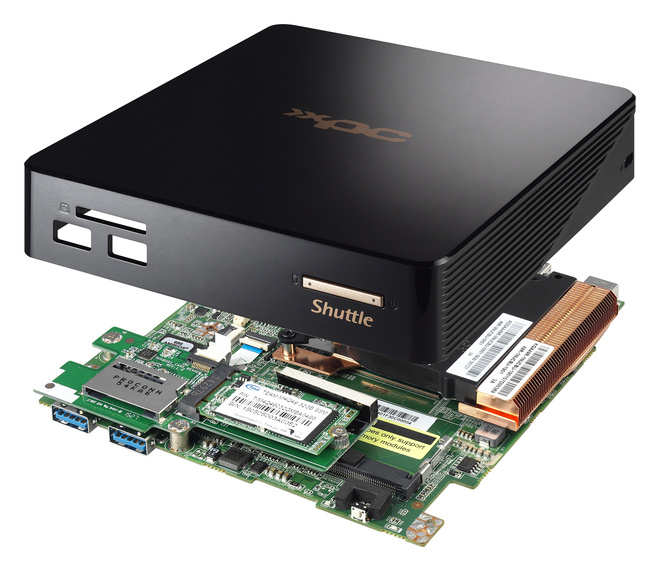

  • Memory support
    2x 204-pin SO-DIMM slot
    Supports DDR3L-1333/1600 (PC3-10600/12800) SDRAM at 1.35V
    Supports Dual Channel mode
    Supports a maximum of 8 GB per DIMM, maximum capacity: 16 GB
    Supports two unbuffered DIMM modules (no ECC)
    Caution: This mainboard does only support 1.35V DDR3L memory modules.
    Note: DDR3L has a lower operation voltage as DDR3
  • Slot for M.2 SSD
    M.2 slot: (NGFF) type 2242, key M
    Supports M.2 SSD card, key B+M, dimensions 22 x 42 mm, Serial ATA interface
    Caution: SSDs with PCIe interface (M key only) are not supported
  • Audio
    Audio Realtek® ALC 269Q-VC3 High-Definition Audio Codec
    3.5mm / 4-pole combo audio connector for headphones and microphone [2]
    Digital multi-channel audio output: via HDMI and Mini-DisplayPort
  • Gigabit LAN
    Intel i218LM PHY connected to the MAC of the processor
    Supports 10 / 100 / 1.000 MBit/s operation (Gigabit)
    Supports WAKE ON LAN (WOL)
    Supports network boot by Preboot eXecution Environment (PXE)
  • Wireless Network (WLAN)
    WLAN expansion card (M.2- 2230-AE) with two internal antennas
    Chip: Realtek RTL8821AE
    Supports Wireless LAN IEEE 802.11b/g/n/ac 1T1R, 2,4 GHz or 5 GHz
    Max. speed: 150 Mbps (2.4 GHz) or 433 Mbps (5 GHz)
    Supports Bluetooth 4.0
  • 2.5" Drive Bay
    Supports one Serial ATA hard disk
    or one SATA SSD drive in 6.35cm/2.5" format
    Device height: 7 mm (max.)
    Supports Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
    Note: no Serial ATA cable is required
  • Card Reader
    Integrated SD card reader
    Supports SD, SDHC and SDXC memory flash cards
    Genesys Logic GL823-OGY08 with USB interface
    Supports booting from SD card

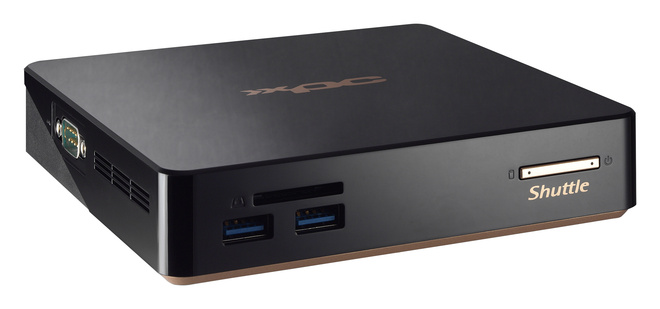

  • Front Panel connectors
    2x USB 3.0 (both support 2.0 A charging)
    SD card reader (supports SD, SDHC, SDXC)
    Power button
    Power LED (blue, blinking in suspend mode)
    HDD LED (orange)

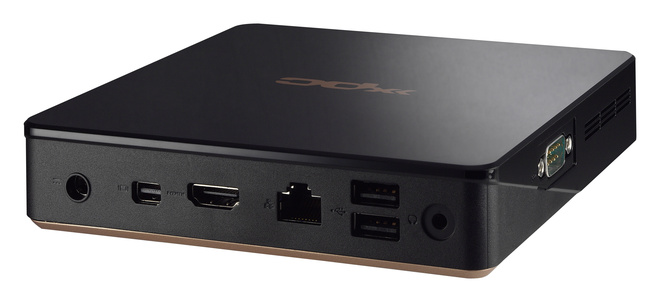

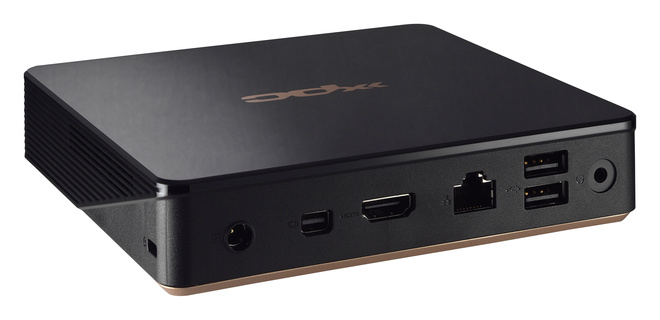

  • Back Panel connectors
    Mini-DisplayPort 1.2 [1]
    HDMI 1.4a
    2x USB 2.0
    Gigabit LAN (RJ45)
    Audio Combo Port for headphones and microphone (3.5 mm jack, 4-pole) [2]
    DC-input connector for external power adapter
  • Left Side connectors
    Serial RS232 COM port (D-Sub, 9-pin)
  • Supplied Accessories
    Multi-language user guide
    Driver DVD for Windows
    VESA mount set (made of steel, with screws)

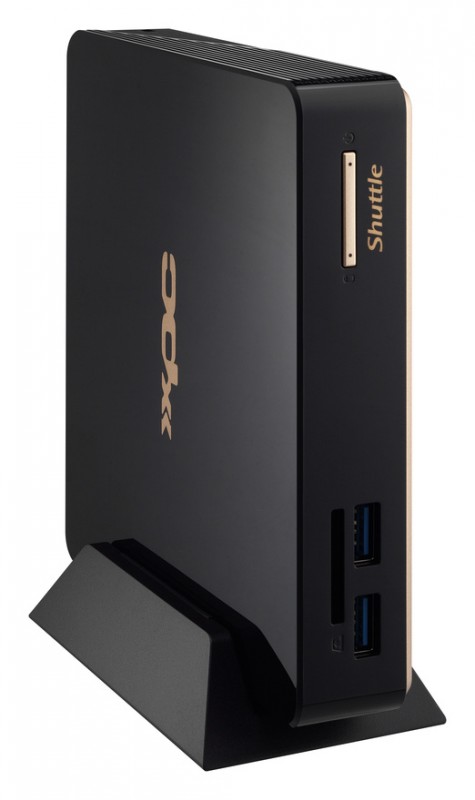

    Stand for vertical operation mode
    Bracket for a 2.5" drive with screws
    Power adapter with AC power cord
  • Optional Expansion Kits:
    (available from Q1'16 on request)
    1) Graphics: AMD R7 M370 "Litho XT"
    2) I/O box: 1x Gigabit LAN, 2x USB 2.0, 1x 2.5" bay (SATA 6G)
    3) I/O box: 3x RS232 COM port, 1x 2.5" bay (SATA 6G)
  • TPM (Optional)
    Only available upon request:
    Trusted Platform Module (TPM) supports TPM 1.2 or 2.0 specifications
  • Environmental Spec
    Operating temperature range: 0~50°C [3]
    Relative humidity range: 10~90% (non-condensing)
  • Conformity/Certifications
    EMI: FCC, CE, BSMI, C-Tick
    Safety: CB, BSMI, ETL
    This device is classed as a technical information
    equipment (ITE) in class B and is intended for use in
    living room and office. The CE-mark approves the
    conformity by the EU-guidelines:
    - EMV-guideline 89/336/EWG electromagnetic tolerance
    - LVD-guideline 73/23/EWG use of electric devices
    within certain voltage-limits

Minipočitač Shuttle XPC nano NC01U

Záruka24 mesiacov
Rozmery Š x V x H141 x 141 x 29 mm (LWH)
Hmotnosť0.36 kg net, 1.26 kg gross
